Connections for standalone MMA welding and gouging

X3 power sources can be used for MMA welding and carbon arc gouging also without a wire feeder. The HR53 remote control is required for this standalone use.

To connect the electrode holder, earth return cable and HR53 remote control to the X3 power source, proceed as follows:

1.

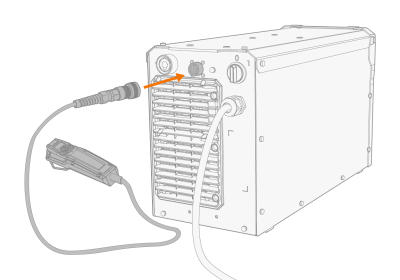

Connect the HR53 remote control to the control cable connector on the rear of the power source.

2.

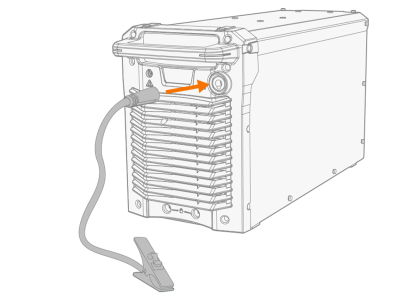

Connect the earth return cable to the earth return cable connector (-) on the front of the power source.

3.

Connect the electrode holder to the welding current cable connector (+) on the rear of the power source.

Once the power source is turned on, it will start in the MMA welding / gouging mode.

For more information on the HR53 remote control, refer to Using HR53 remote control.
