Wire feed mechanism

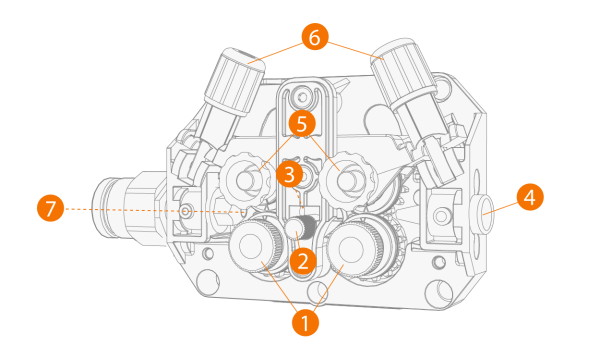

X3 wire feeder wire feed mechanism:

1.

Drive rolls and drive roll securing caps

2.

Middle guide tube tightening knob

3.

Middle guide tube

4.

Inlet guide tube

5.

Pressure rolls and pressure roll mounting pins

6.

Pressure roll locking arms

7.

Outlet guide tube.



For replacing the wire feed rolls, refer to Installing and replacing feed rolls.

For replacing the wire guide tubes, refer to Installing and replacing wire guide tubes
