X3 power source with cooling unit
This section describes the structure of X3 power sources with cooling unit. The cooling unit is integrated with the power source in the water-cooled system option.

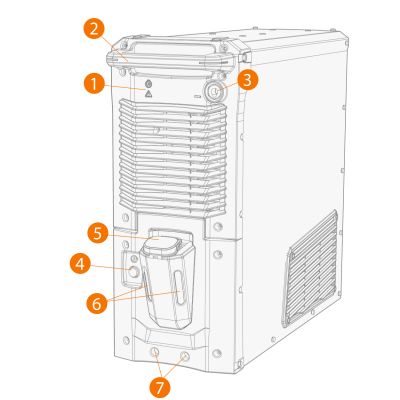

Front:
• Power on/off indicator: The LED is green when the unit is on.
• Warning indicator: The LED is yellow if overheating occurs.
|
2.
|
Handle (not intended for mechanical lifting) |
|
3.
|
Earth return cable connector, minus (-) connector |
|
4.
|
Cooling liquid circulation button |
>> Keeping the button pressed activates the pump and circulates the cooling liquid throughout the system. Once released, the pump stops.
|
6.
|
Cooling liquid level indicator |
|
7.
|
Front locking interface (locking on the optional cart) |

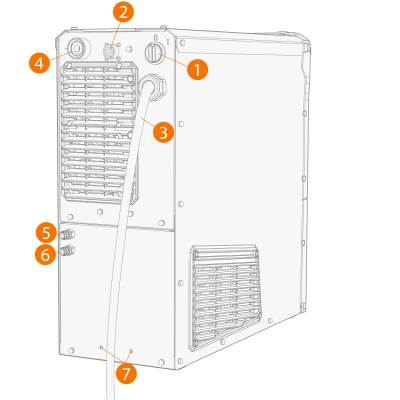

Rear:
|
2.
|
Control cable connector |
|
4.
|
Welding current cable connector, plus (+) connector |
|
5.
|
Coolant inlet/outlet connector (color-coded) |
|
6.
|
Coolant inlet/outlet connector (color-coded) |
|
7.
|
Rear locking interface |
>> For locking on top of the optional cart.
