X3 power source
This section describes the structure of X3 power sources without cooling unit.

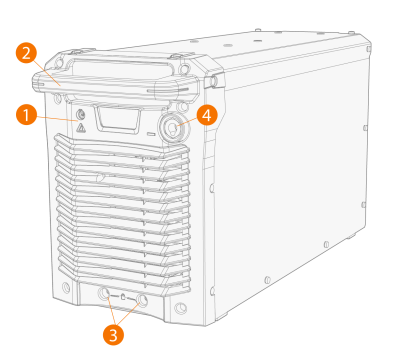

Front:
| 1. | Indicator panel |
• Power on/off indicator: The LED is green when the unit is on.
• Warning indicator: The LED is yellow if overheating occurs.
| 2. | Handle (not intended for mechanical lifting) |
| 3. | Front locking interface |
>> For locking on top of the optional cart.
| 4. | Earth return cable connector, minus (-) connector |

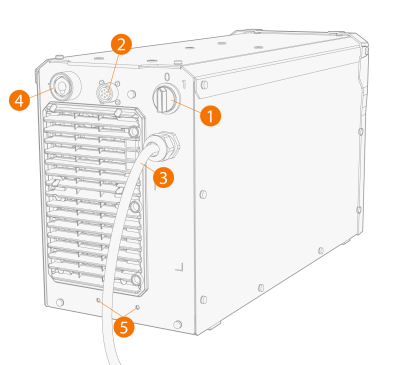

Rear:
| 1. | Power switch |
| 2. | Control cable connector |
| 3. | Mains cable |
| 4. | Welding current cable connector, plus (+) connector |
| 5. | Rear locking interface |
>> For locking on top of the optional cart.
