Connecting to Kemppi cloud services

To use the Kemppi cloud services, connect the welding machine to the internet either through a WLAN or a wired connection. Form the connection by using the Cloud services view in the View menu. You can also see the status of the Cloud services there.

Cloud communication requires that your network firewall allows outbound data through ports 80 (HTTP), 123 (NTP), 443 (HTTPS) and 8883 (Secure MQTT).

For more information on WeldEye and using Control Pad, refer to the X8 MIG Welder user documentation.

WLAN connection

Proceed as follows:

1.

Go to the View menu > Cloud services > WiFi settings.

2.

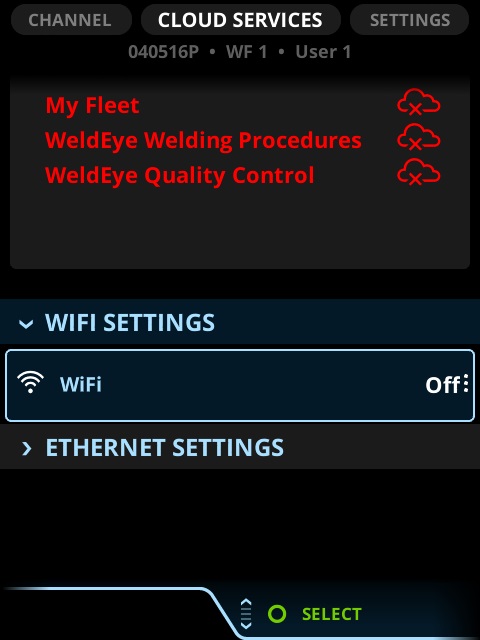

Switch the WiFi on.

3.

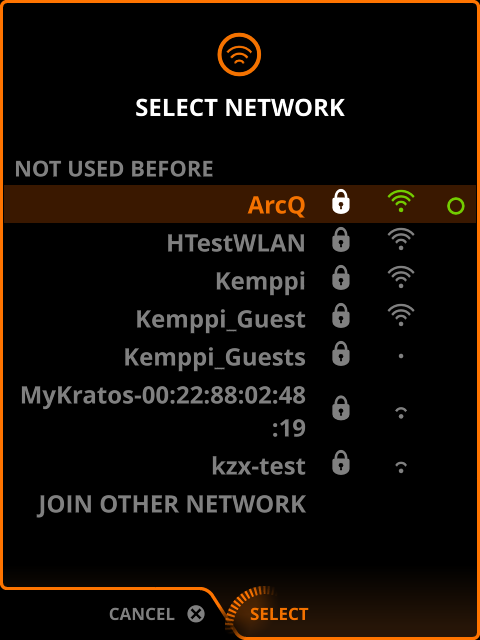

Select the WLAN network.

4.

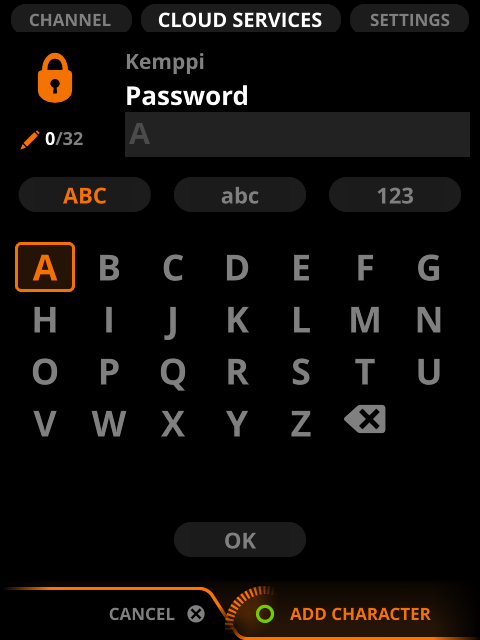

Fill in the password, if needed.

5.

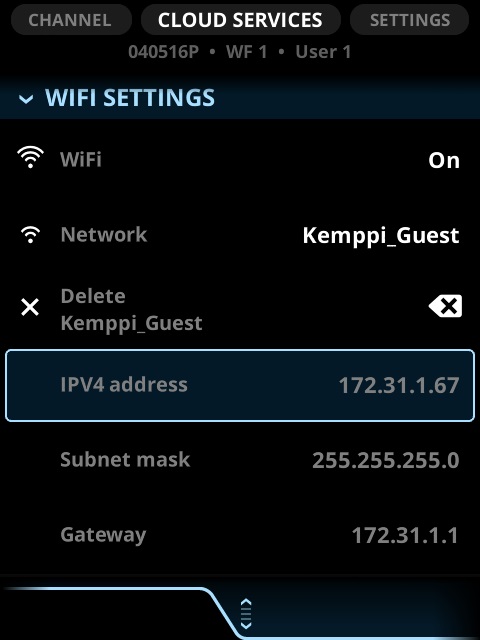

Network details are shown in WiFi settings, when the WLAN connection is created.

Wired connection

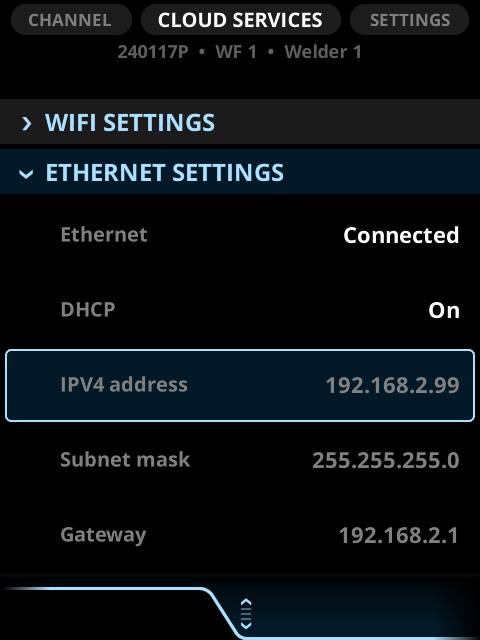

The Ethernet connection is automatically created when you connect the Ethernet cable to X8 MIG Welder. The Ethernet connection details are shown in Ethernet settings when the connection is created.

Set DHCP to OFF to configure the Ethernet settings manually.

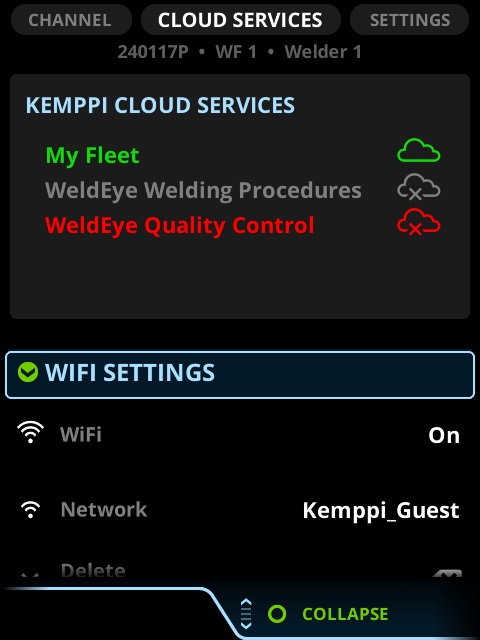

Cloud services status

The different icons for cloud services are listed in the table below.

Table 1. Cloud service icons

	Connection to the service
	No connection to the service
	No user rights to the service
