Installing remote control

Remote controls are optional. Connect the remote control to the Minarc T 223 DC power source or the Flexlite TX welding torch. To enable remote operation, set the remote mode in the control panel (refer to Minarc T 223 DC control panels).

Minarc T 223 DC is compatible with the following Kemppi remote controls:

•

R10 hand remote control

•

FR41 foot pedal remote control

•

TXR10 torch remote control

•

TXR20 torch remote control (rocker switch).

For information on installing a torch remote control, refer to Kemppi Userdoc.

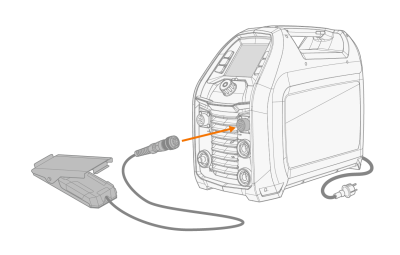

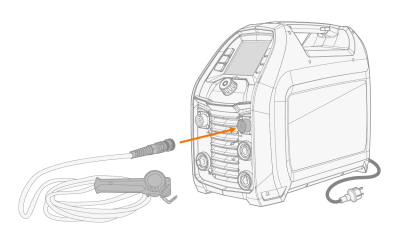

Remote control R10/FR41

1.

Connect the remote control cable to the power source.
