Connecting TIG welding torch

Minarc T 223 DC is designed to be used with the Kemppi Flexlite TX TIG welding torches. For more information, refer to Kemppi Userdoc.

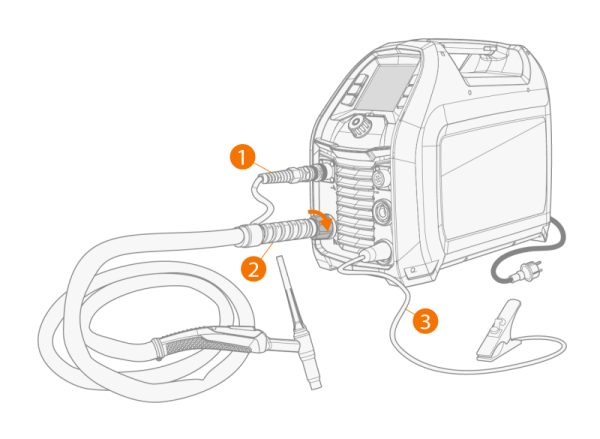

1.

Connect the control cable (1) to the control cable connector in the power source.

2.

Connect the welding cable (2) to the TIG welding cable connector in the power source. Secure by turning the connector clockwise.

3.

Connect the earth return cable to the positive (+) DIX connector.

4.

Check the gas flow. For more information, refer to Installing gas bottle and testing gas flow.
