Replacing control panel

Tools needed:

T20

Detaching control panel

1.

Detach the control panel and frame from the power source:

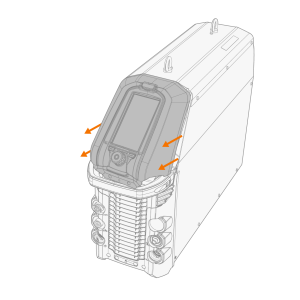

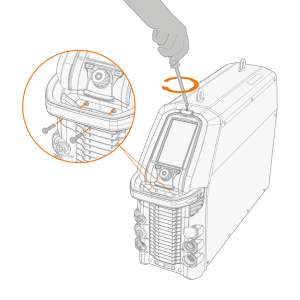

>>  Remove the fixing screws at the top and bottom of the panel.

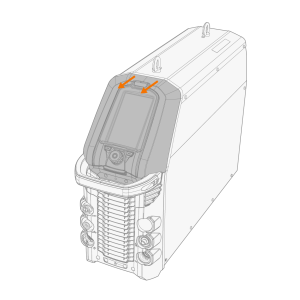

>>  First pull the top of the control panel slightly and then the rest of the panel.

2.

Disconnect the control panel's cable.

3.

Remove the control panel from the frame:

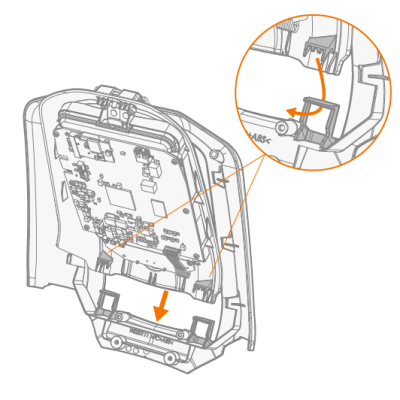

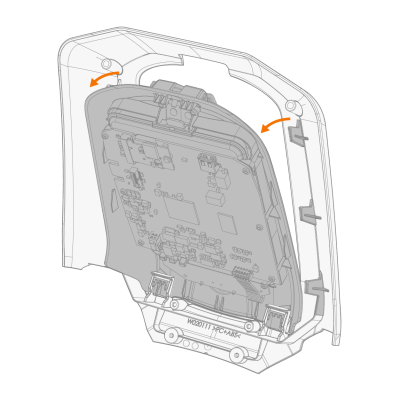

>>  Release the clips at the top by pressing the panel from the outside.

>>  Release one clip at the bottom, rotate the panel slightly and release the second clip.

Installing control panel

1.

Install the control panel to the frame. Ensure that the panel is firmly attached to the frame.

2.

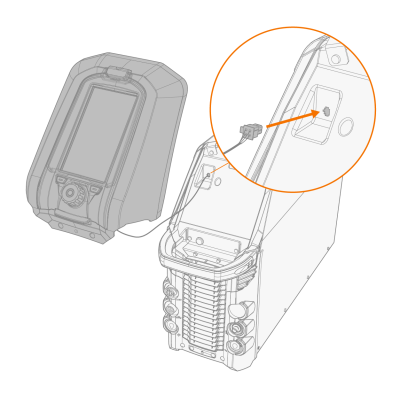

Connect the new control panel’s cable.

3.

Mount the control panel in place:

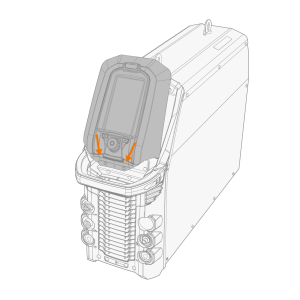

>>  Insert the bottom of the panel in the slot first.

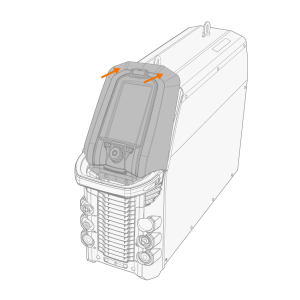

>>  Push the top of the panel firmly so that it locks in place.

>>  Secure the control panel in place with the fixing screws.
