Installing equipment on cart (optional)

There is a 4-wheel transport unit available for use with the MasterTig welding equipment.

Tools needed:

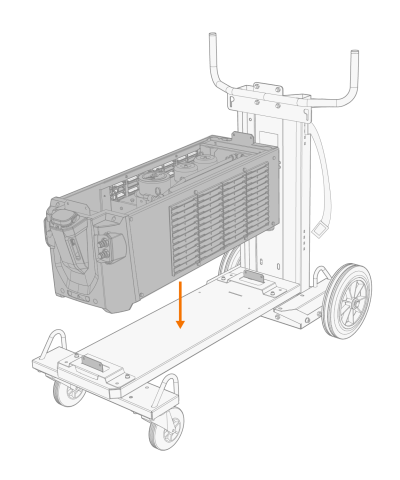

1. Install the cooling unit on the cart.

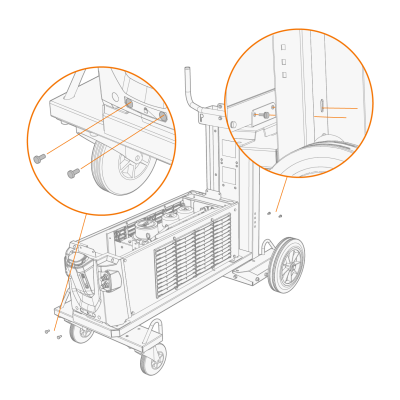

2. Fix the cooling unit to the cart with two screws (M5x12) in the front and two screws (M5x12) in the rear.

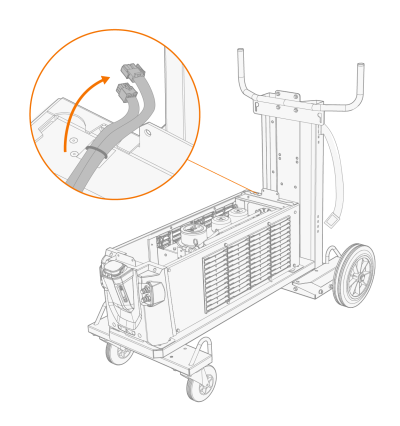

3. Route the cooling unit's connection cables so that they remain accessible through the next steps.

4. Install the power source on top of the cooling unit. Refer to Installing cooling unit (optional) for installation details.

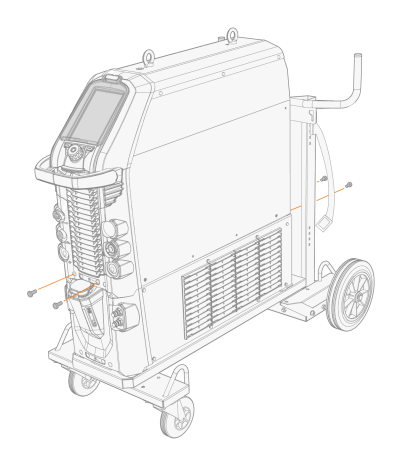

5. Secure the power source with two screws (M5x12) in the front and two screws (M5x12) in the rear.

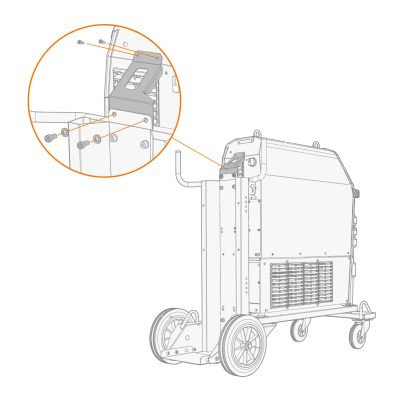

6. Secure the equipment to the cart with the rear connection bracket. Rear screws: M8x16, top screws: M5x12.

For lifting the equipment, refer to Lifting MasterTig 535 equipment.
