Lifting MasterTig 535 equipment

If you need to lift the MasterTig 535 welding equipment, pay special attention to the safety measures. Also follow the local regulations.

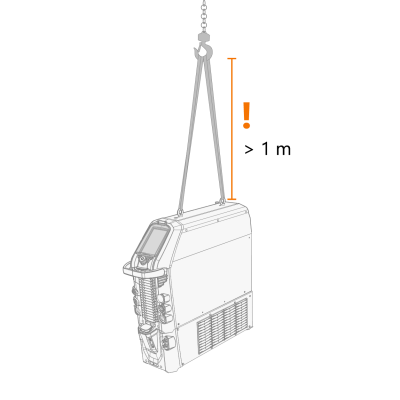

Connect the 2-legged chain or strap from the hoist hook to the two lifting eyes on the power source.

Ensure the chain or strap is long enough to avoid excessive lateral load on the lifting eyes.

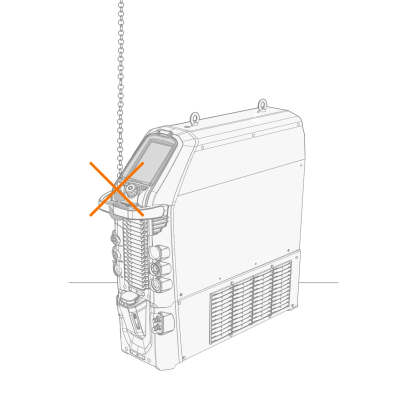

Do not attempt to lift the equipment with a hoist from the handle on the power source. The handle is for moving the equipment when installed on cart.

Lifting equipment on cart

1.

Ensure that the welding equipment is properly secured to the cart.

2.

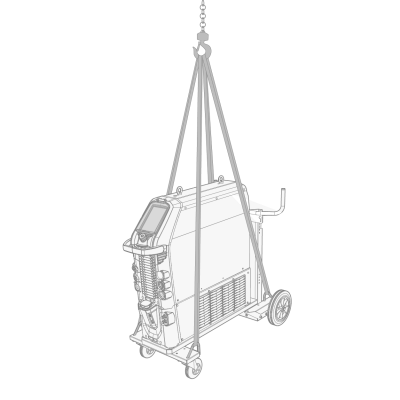

Connect the 4-legged chain or straps from the hoist hook to the four lifting points on the cart on both sides of the welding equipment.

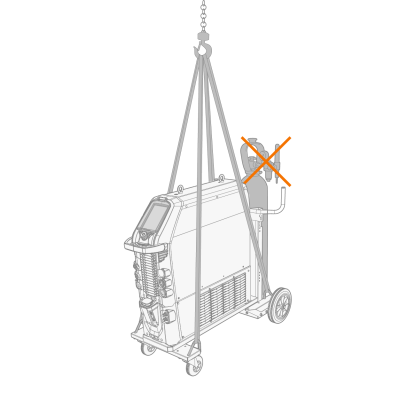

If a gas bottle is installed on cart, DO NOT attempt to lift the cart with the gas bottle in place.
