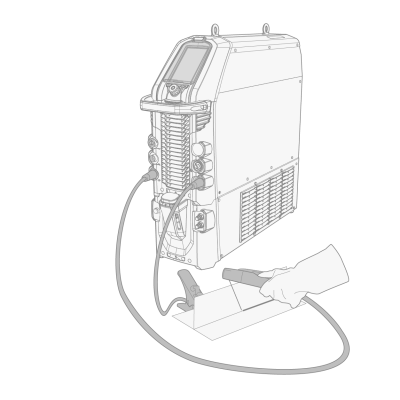

Connecting MMA electrode holder

1.

Connect the MMA electrode holder to the positive (+) connector on the power source.

2.

Connect the earth return cable to the negative (-) connector on the power source.

3.

Ensure the earth return clamp is secured tightly to the work piece or work surface.

4.

Ensure that the clamp's contact surface is as large as possible.
