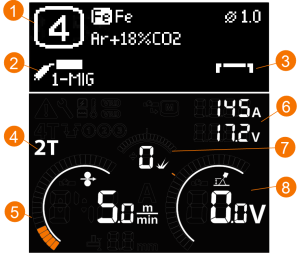

Control panel: Main view
The Master M control panel's main view consists of the settings display and welding display. The content displayed depends on the welding process and features and functions used.
|
1.
|
Memory channel (and filler wire and shielding gas settings, if set) |
|
2.
|
Active welding process |
|
3.
|
Applied welding functions* |
|
4.
|
Applied trigger logic function |
>> The value range is defined by the active welding program, step 0.1, default = 5.0 m/min
>> Controls the short circuit behavior of the arc. The lower the value the softer the arc, the higher the value the rougher the arc. Value range: -9 ... +9, default = 0
>> With MAX process a corresponding MAX parameter adjustment is displayed
>> With 1-MIG process voltage fine tuning is displayed
>> With MAX process a corresponding MAX parameter adjustment is displayed.
Control knob functions
Left control knob:
|
•
|
Manual MIG: Wire feed speed adjustment |
|
•
|
1-MIG: Wire feed speed adjustment |
|
•
|
Pulse MIG: Wire feed speed adjustment |
|
•
|
DPulse MIG: Wire feed speed adjustment and switching between pulse levels with the control knob button |
|
•
|
TIG/MMA: Welding current adjustment. |
Right control knob:
|
•
|
Manual MIG: Welding voltage and dynamics adjustment |
|
•
|
1-MIG: Dynamics adjustment and fine tuning of welding voltage and switching between the adjustments with the control knob button |
|
•
|
Pulse MIG: Fine tuning of welding voltage |
|
•
|
DPulse MIG: Fine tuning of welding voltage |
|
•
|
MMA: Dynamics adjustment. |
* Applied welding functions
|
Hot start, Powerlog and crater fill OFF. |
|
Hot start and crater fill ON.
|
|
Hot start, Powerlog (power levels) and crater fill ON. |
