Equipment description
Kemppi Master T 505 ACDC welding equipment is designed for professional industrial use, with characteristics especially suitable for welding materials like aluminum and stainless steel. The multipurpose Master T 505 power source is suitable for MMA welding, TIG welding and pulsed TIG welding with both direct current (DC) and alternating current (AC). The Master T 505 power source can also be used for demagnetizing the work piece and for cleaning and polishing the weld.
Power source model:
|
•
|
Master T 505 ACDC GM, multi-voltage and generator compatible (500 A AC/DC) * |
* A dedicated VRD (Voltage Reduction Device) model version, where the VRD function is locked on, is also available.
Control panel:
|
•
|
MTP35X control panel (AC/DC, 7" TFT LCD display panel). |

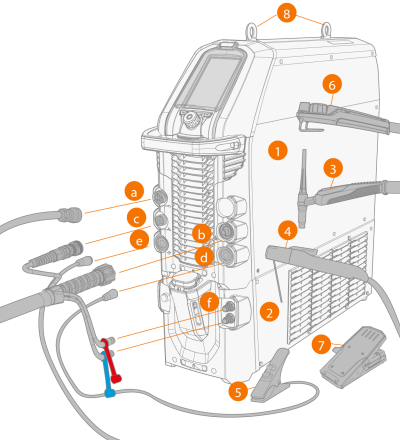

Equipment:
|
1.
|
Master T 505 power source |
|
2.
|
MasterTig Cooler MXL (optional) |
|
5.
|
Earth return cable and clamp |
|
6.
|
Remote control (wired or wireless) |
|
7.
|
Foot pedal remote control (wired or wireless) |

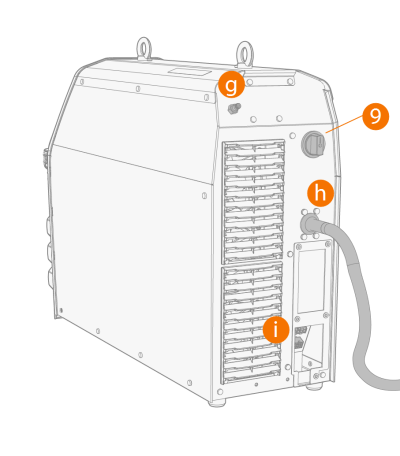

Connections:
|
a.
|
External remote control connector |
|
b.
|
TIG welding cable connector (connection type R1/4) |
|
c.
|
Control cable connector |
|
f.
|
Coolant liquid inlet and outlet (color-coded) |
|
i.
|
Cooling unit connection. |
|
Equipment identification
Serial number
Serial number of the device is marked on the rating plate or in another distinctive location on the device. It is important to make correct reference to the serial number of the product when ordering spare parts or making repairs for example.
Quick Response (QR) code
Device-related information or a web link to such information may be found in the form of a QR code on the device. The code can be read, for example, with a mobile device camera and a QR code application.
|
