Equipment description
Kemppi Master T 245 ACDC, 355 DC, 355 ACDC and 405 DC welding devices are designed for professional industrial use, with characteristics especially suitable for welding materials like aluminum and stainless steel. The equipment consists of power source, control panel and cooling unit (optional). The cooling unit is used in liquid-cooled TIG welding with Master T power source. The multipurpose Master T power sources are suitable for MMA welding, TIG welding and pulsed TIG welding with both direct current (DC) and, depending on the model selected, alternating current (AC). The ACDC power sources equipped with the MTP35X control panel can also be used for demagnetizing the work piece and for cleaning and polishing the weld.
Available power source models:
|
•
|
Master T 245 ACDC GM, multi-voltage and generator compatible (240 A AC/DC) * |
|
•
|
Master T 355 DC (350 A DC) |
|
•
|
Master T 355 DC G, generator compatible (350 A DC) * |
|
•
|
Master T 355 DC GM, multi-voltage and generator compatible (350 A DC) |
|
•
|
Master T 355 ACDC (350 A AC/DC) |
|
•
|
Master T 355 ACDC G, generator compatible (350 A AC/DC) * |
|
•
|
Master T 355 ACDC GM, multi-voltage and generator compatible (350 A AC/DC) |
|
•
|
Master T 405 DC G, generator compatible (400 A DC) * |
* A dedicated VRD (Voltage Reduction Device) model version, where the VRD function is locked on, is also available.
Control panels:
|
•
|
MTP23X control panel (DC, membrane panel) |
|
•
|
MTP33X control panel (AC/DC, membrane panel) |
|
•
|
MTP35X control panel (AC/DC, 7" TFT LCD display panel). |

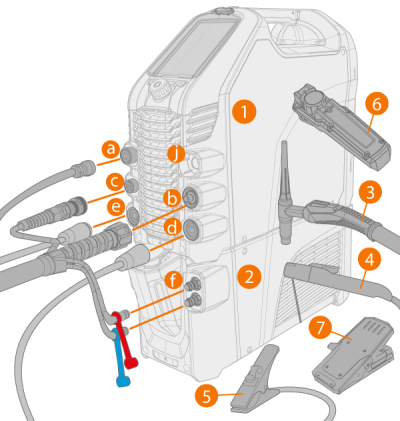

Equipment:
|
1.
|
Master T 245/355/405 power source |
|
2.
|
MasterTig Cooler M (optional) |
|
5.
|
Earth return cable and clamp |
|
6.
|
Remote control (wired or wireless) |
|
7.
|
Foot pedal remote control (wired or wireless) |
Connections:
|
a.
|
External remote control connector |
|
b.
|
TIG welding cable connector (connection type R1/4) |
|
c.
|
Control cable connector |
|
f.
|
Coolant liquid inlet and outlet (color-coded) |
|
i.
|
Cooling unit connection |
|
j.
|
Empty holder for unused DIX connector. |
|
Equipment identification
Serial number
Serial number of the device is marked on the rating plate or in another distinctive location on the device. It is important to make correct reference to the serial number of the product when ordering spare parts or making repairs for example.
Quick Response (QR) code
The serial number and other device-related identification information may also be saved in the form of a QR code (or a barcode) on the device. Such code can be read by a smartphone camera or with a dedicated code reader device providing fast access to the device-specific information.
|
