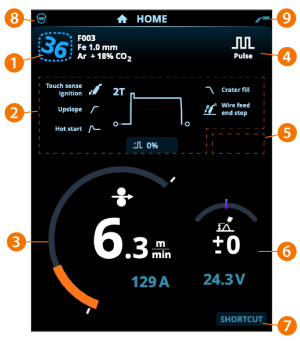

Control panel: Home view
Master M 358 control panel's Home view is also the main welding view.
|
1.
|
Memory channel information |
|
2.
|
Applied welding parameters and functions |
|
3.
|
Wire feed speed (MIG) or welding current (TIG, MMA) |
|
4.
|
Active welding process |
|
5.
|
Applied device settings (e.g. remote control or subfeeder) |
>> With 1-MIG process voltage fine tuning is displayed
>> With MAX process a corresponding MAX parameter adjustment is displayed.
|
7.
|
Configurable function for the right control knob button |
>> To define a shortcut, keep the right control knob button pressed for 3 seconds and select the shortcut function from the list of available options.
>> Once defined, the shortcut is used by short press of the right control knob button when in Home view.
|
9.
|
Active operation mode. |
Control knob functions in Home view
Left control knob:
|
•
|
Manual MIG: Wire feed speed adjustment |
|
•
|
1-MIG: Wire feed speed adjustment |
|
•
|
Pulse MIG: Wire feed speed adjustment |
|
•
|
DPulse MIG: Wire feed speed adjustment and switching between pulse levels with control knob button |
|
•
|
TIG/MMA: Welding current adjustment |
Right control knob:
|
•
|
Manual MIG: Welding voltage adjustment |
|
•
|
1-MIG: Fine tuning of welding voltage or Wise/MAX parameter adjustment |
|
•
|
Pulse MIG: Fine tuning of welding voltage or Wise/MAX parameter adjustment |
|
•
|
DPulse MIG: Fine tuning of welding voltage |
|
•
|
MMA: Dynamics adjustment. |
|
With Wise features or MAX processes turned on, the control knob functions in Home view and during welding may differ from the above. For more information on these features and processes, refer to Additional guidance to functions and features. |
