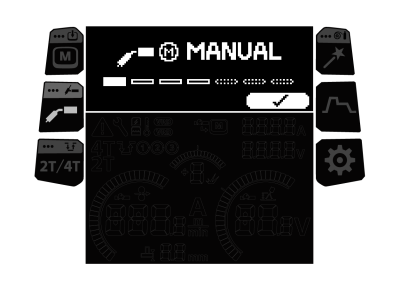

Control panel: Welding process

Welding process is selected in the Welding process view. For more information on welding processes, refer to Additional guidance to functions and features.

Pulse welding is possible with Master M 205.

Selecting welding process

1.

Turn the right control knob to highlight the desired welding process.

Only a welding process that supports the set filler wire and shielding gas combination can be selected. If the filler wire and shielding gas settings are not defined, then only manual MIG process is available. The filler wire and shielding gas settings can be changed at any time by long-pressing the Weld Assist button.

2.

Press the right control knob to confirm selection.
