Control panel: Memory channels

There are 6 memory channels available in MIG welding.

Selecting memory channel

1.

Turn the right control knob to highlight the desired memory channel.

2.

Press the right control knob to select the memory channel.

Saving changes to memory channel

1.

Adjust welding parameters.

2.

Long-press the memory channel button.

3.

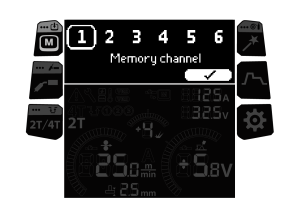

The channel number framed by a dashed line indicates that the set welding parameters are different from the ones currently saved on the active memory channel:

4.

Save the changes to the active memory channel by pressing the right control knob or select another channel by turning the right control knob.
