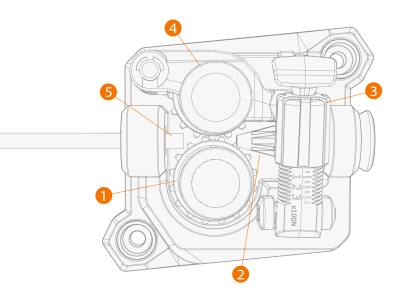

Wire feed mechanism

1.

Drive roll and drive roll mounting cap

2.

Inlet guide tube

3.

Pressure handle

4.

Pressure roll and pressure roll mounting pin

5.

Outlet guide tube.



For replacing the feed rolls, refer to Installing and replacing feed rolls.

For replacing the wire guide tubes, refer to Installing and replacing wire guide tubes.
