Master Cooler 05M cooling unit (optional)
|
The cooling unit is not available for Master M 205 with 110...130 V supply voltage. |

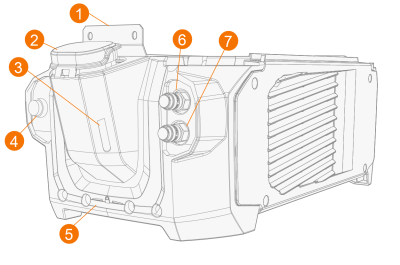

Front
|
1.
|
Front locking interface |
>> For locking to the power source
|
3.
|
Cooling liquid level indicator |
|
4.
|
Cooling liquid circulation button |
>> Keeping the button pressed activates the pump and circulates the cooling liquid throughout the system. Once released, the pump stops.
|
5.
|
Front locking interface |
>> For locking on the cart
|
6.
|
Coolant inlet connector (red) |
|
7.
|
Coolant outlet connector (blue). |

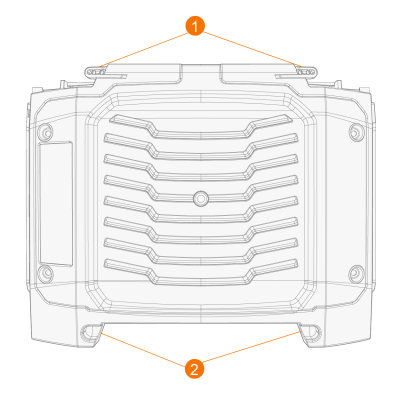

Rear
|
1.
|
Rear locking interface |
>> For locking to the power source
|
2.
|
Rear locking interface |
>> For locking on the cart.
