Equipment description
Kemppi Master 315 equipment is designed for professional industrial use. The equipment consists of a power source and a factory-installed control panel. The Master power source is suitable for MMA and TIG welding with direct current (DC).
Available power source models:
|
•
|
Master 315 G, generator compatible (300 A) * |
|
•
|
Master 315 GM, multi-voltage and generator compatible (300 A) |
* A dedicated VRD (Voltage Reduction Device) model version, where the VRD function is locked on, is also available.
Control panel:
|
•
|
MTP35X control panel (7" TFT LCD display panel). |

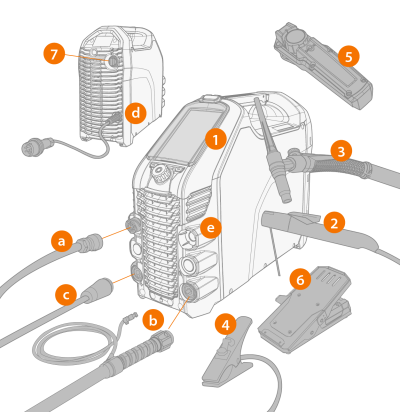

Equipment:
|
1.
|
Master 315 power source |
|
3.
|
TIG torch (Flexlite TX 223GVD13) |
|
4.
|
Earth return cable and clamp |
|
5.
|
Remote control (wired or wireless) |
|
6.
|
Foot pedal remote control (wired or wireless) |
Connections:
|
a.
|
External remote control connector |
|
e.
|
Empty holder for unused DIX connector. |
|
Equipment identification
Serial number
Serial number of the device is marked on the rating plate or in another distinctive location on the device. It is important to make correct reference to the serial number of the product when ordering spare parts or making repairs for example.
Quick Response (QR) code
The serial number and other device-related identification information may also be saved in the form of a QR code (or a barcode) on the device. Such code can be read by a smartphone camera or with a dedicated code reader device providing fast access to the device-specific information.
|
