GX-R welding torch dimensions

The GX-R welding torches are available in different neck lengths, heights, and angles.

Model name	Length (mm) x	Height (mm) y	Angle (degrees) ɑ	Weight (g)
GX-R TORCH 500W 240MM 0D	268	0	0	667
GX-R TORCH 500W 240MM 22D	256.9	59.8	22	667
GX-R TORCH 500W 240MM 35D	243.6	84.6	35	667
GX-R TORCH 500W 240MM 45D	232.3	98.2	45	667
GX-R TORCH 500W 340MM 0D	368	0	0	838
GX-R TORCH 500W 340MM 22D	356.9	59.8	22	838
GX-R TORCH 500W 340MM 35D	343.6	84.6	35	838
GX-R TORCH 500W 340MM 45D	332.3	98.2	45	838
GX-R TORCH 500W 440MM 0D	468	0	0	1004
GX-R TORCH 500W 440MM 22D	456.9	59.8	22	1004
GX-R TORCH 500W 440MM 35D	443.6	84.6	35	1004
GX-R TORCH 500W 440MM 45D	432.3	98.2	45	1004
GX-R TORCH 400G 240MM 0D	268	0	0	651
GX-R TORCH 400G 240MM 22D	256.9	59.8	22	651
GX-R TORCH 400G 240MM 35D	243.6	84.6	35	651
GX-R TORCH 400G 240MM 45D	232.3	98.2	45	651
GX-R TORCH 400G 340MM 0D	368	0	0	803
GX-R TORCH 400G 340MM 22D	356.9	59.8	22	803
GX-R TORCH 400G 340MM 35D	343.6	84.6	35	803
GX-R TORCH 400G 340MM 45D	332.3	98.2	45	803
GX-R TORCH 400G 440MM 0D	468	0	0	950
GX-R TORCH 400G 440MM 22D	456.9	59.8	22	950
GX-R TORCH 400G 440MM 35D	443.6	84.6	35	950
GX-R TORCH 400G 440MM 45D	432.3	98.2	45	950
GX-R TORCH 500W 340MM 22D S50	350.5	5.7	22	838
GX-R TORCH 500W 440MM 22D S50	442.2	7.6	22	1004
GX-R TORCH 500W 440MM 30D S50	450.5	5.7	30	1004
GX-R TORCH 400G 340MM 22D S50	350.5	5.7	30	803
GX-R TORCH 400G 440MM 22D S50	442.2	7.6	22	950
GX-R TORCH 400G 440MM 30D S50	450.5	5.7	30	950

The following figures illustrate the measurement points for GX-R welding torch dimensions.

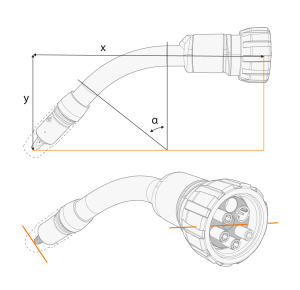

GX-R

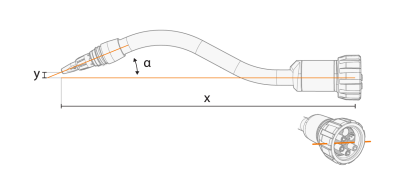

GX-R S
