Connecting torch

Hand-tighten the torch connectors. Loose connectors may overheat, create contact disturbances, mechanical damage and water or gas leakage.

For connecting the torch (and applicable extension parts), refer also to your welding equipment’s instructions.

If not already preinstalled, the wire liner must be installed before connecting the torch. Refer to Installing and replacing wire liner for instructions.



1.

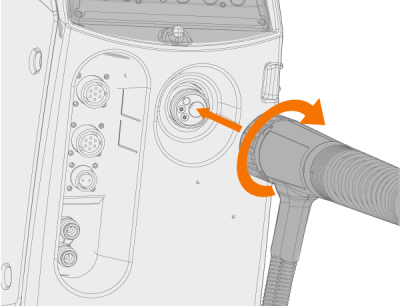

Connect the torch to your welding equipment. Secure the connector in place by turning the collar clockwise.

2.

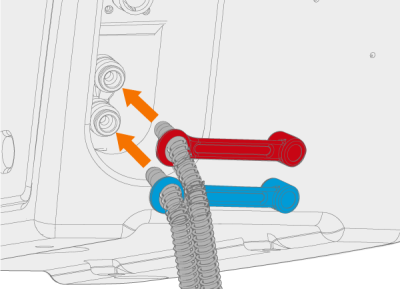

Water-cooled models only: Connect the coolant inlet and outlet hoses to your welding equipment. Note that the connectors are color-coded.

Make sure to connect the coolant hoses to the correct hose connectors. If the connections cross, the welding torch may overheat.

3.

Flexlite GXe series 8 welding torches only: Connect the control cable to your X5 FastMig or Master M (350 models) welding equipment's control connector.

Refer to your welding equipment's operating instructions for more information on its connection features.
