Technical data: Flexlite GX 400A (gas-cooled)

Flexlite GX		403G / 405G	408GMN
Feature		Value
Welding process		MIG/MAG	MIG/MAG
Contact tip		M10x1	M10x1
Method of guidance		Manual	Manual
Type of cooling		Air	Air
Coolant max. pressure (bar)		-	-
Min. cooling power at 1l/min * (kW)		-	-
Min. flow rate (l/min)		-	-
Type of connection		Euro	Kemppi
Wire diameters (mm)		0.8...1.6	0.8...1.6
Load capacity:
	35% / Ar + 18% CO₂	400 A	-
	60% / Ar + 18% CO₂	-	400 A
	100% / Ar + 18% CO₂	-	-
	35% / CO₂	-	-
	60% / CO₂	-	-
	100% / CO₂	-	-
	Gas flow (l/min) in load capacity test	20	20
	Filler wire diameter in load capacity test	1.6	1.6
	Stick out length in load capacity test	22	22
Filler wire diameters (mm):
	Fe	0.8...1.6	0.8...1.6
	Fe-MC/FC	0.9...1.6	0.9...1.6
	Ss	0.8...1.6	0.8...1.6
	Ss-MC/FC	0.9...1.6	0.9...1.6
	Al	0.8...1.6	0.8...1.6
Operating temperature range		-20°C…+40°C	-20°C…+40°C
Storage temperature range		-40°C…+60°C	-40°C…+60°C
Pistol grip handle		Yes	Yes
Rotating neck		Yes	Yes
Changeable neck		No	Yes
Neck dimensions:
	Length x (mm) ( see figure below )	156	132
	Height y (mm) ( see figure below )	112	110
	Neck angle ɑ (°) ( see figure below )	50	50
Standards		IEC 60974-7	IEC 60974-7
Gun length (m)		3.5 / 5	3.5 / 5

* Measured using the longest gun length available.

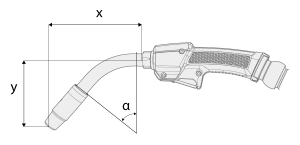

Neck dimensions, G-models:

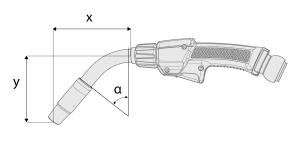

Neck dimensions, MN-models:
