Trigger switch replacement

In normal use, the trigger switch replacement is not a frequent task. However, removing the trigger switch temporarily may be necessary, for example, when using a series 5 Flexlite GX welding gun with other than Kemppi Fastmig equipment.

Tools needed:

TX20

1.

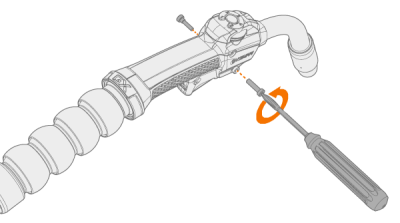

Remove the screws holding the trigger switch in place.

2.

Slide the trigger switch slightly forward (towards the gun welding end) and pull it out.

Do not use excessive force, the trigger switch is still attached with a wiring connection underneath.

3.

Disconnect the wiring connector from the trigger switch.

4.

To reinstate the trigger switch or to install a replacement trigger switch, repeat the previous steps in reverse.

Use caution when connecting the wiring connector. Wrong alignment and/or too much force may damage the connector pins.
