Adjusting and tightening neck (gas-cooled models)

With the gas-cooled Flexlite GX welding guns (G-models), the neck position can be adjusted.

Tools needed:

24mm

Do not loosen the neck retaining nut more than it is necessary to adjust the neck. Typically the neck retaining nut is tightened so that the neck is still adjustable by hand, but so that it does not accidentally shift position during welding.

The Flexlite GX HD models do not have a neck retaining nut. The neck is still adjustable by hand and stays in the desired position due to its design.

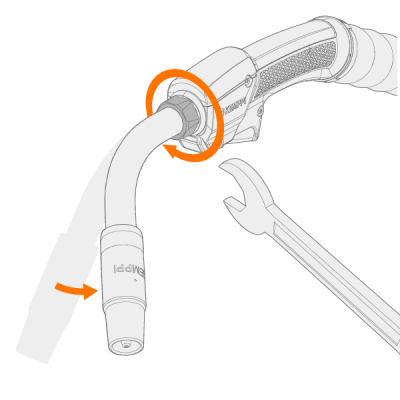

Tighten or loosen the neck retaining nut with a spanner so that it is either possible to adjust the neck position by hand or tighten the nut so that it secures the neck into the desired welding position.
