Assembling gun

For the correct components, refer to Component selection.

Tools needed:

8mm

1.

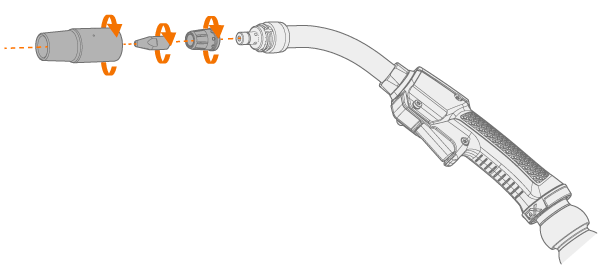

Attach the contact tip adapter and hand-tighten it firmly in place. It is important to tighten the adapter properly to enable a tight connection of the contact tip to the gun.

2.

Attach the contact tip and secure it with the 8 mm spanner.

3.

Attach the gas nozzle and hand-tighten it firmly in place.

With multi-neck gun models only:

4.

Attach the assembled neck to the gun body. Secure with the neck tightening collar.

Hand-tighten the neck tightening collar only. Over-tightening and/or using a tool can damage the gun components.
