General

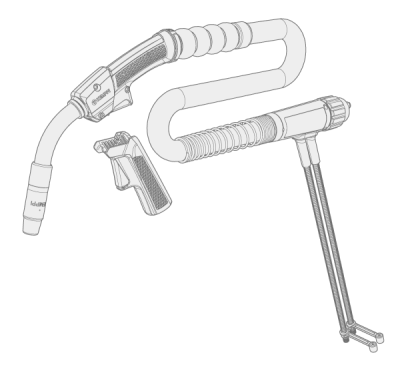

These instructions describe the use of Kemppi's Flexlite GX MIG welding guns. Flexlite GX welding guns are designed for professional manual welding. Flexlite GX range covers both water-cooled and gas-cooled models for MIG welding. Flexlite GX welding guns are available in three different series – 3, 5 and 8 – each designed to serve specific welding needs.
| Flexlite GX models | ||
|---|---|---|
| Series 3*: | Series 5**: | Series 8***: |
| GX 203G | GX 205G | GX 208GMN |
| GX 253G | GX 255G | GX 308GMN |
| GX 303G/W | GX 305G/W | GX 408GMN |
| GX 303GHD | GX 305GHD | GX 428W |
| GX 403G/W | GX 305GMN | GX 428WS |
| GX 403GHD | GX 305GS | GX 528W |
| GX 503W | GX 305WS | GX 608W |
| GX 405G/W | ||
| GX 405GHD | ||
| GX 405WS | ||
| GX 505W | ||
| GX 605W | ||
* Series 3 welding gun models are compatible with the majority of welding equipment.
** Series 5 welding gun models are designed for Kemppi Fastmig equipment with limited support to other models.
*** Series 8 welding gun models are compatible with Kemppi X8 MIG Welder.
In model names: G = gas-cooled, W = water-cooled, MN = multi-neck, S = long cable, HD = heavy-duty.
Important notes
Read the instructions through carefully. For your own safety, and that of your working environment, pay particular attention to the safety instructions delivered with the equipment.
Items in the manual that require particular attention in order to minimize damage and harm are indicated with the below symbols. Read these sections carefully and follow their instructions.
|
Note: Gives the user a useful piece of information. |
|
Caution: Describes a situation that may result in damage to the equipment or system. |
|
Warning: Describes a potentially dangerous situation. If not avoided, it will result in personal damage or fatal injury. |
You can also download the safety instructions by using these links:
| • | Safety |
| • | Personal protection |
| • | Welding guns and torches |
Kemppi symbols: Userdoc.
|
Disclaimer While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. Kemppi reserves the right to change the specification of the product described at any time without prior notice. Do not copy, record, reproduce or transmit the contents of this guide without prior permission from Kemppi. |
