Technical data: Flexlite GF 400 A (gas-cooled)
| Flexlite GF | 403G | |
|---|---|---|
| Feature | Value | |
| Welding process | MIG/MAG | |
| Contact tip | M10x1 | |
| Method of guidance | Manual | |
| Type of cooling | Air | |
| Coolant flow rate (l/min) | - | |
| Coolant max. pressure (bar) | - | |
| Min. cooling power at 1 l/min * (kW) IEC 60974-7 | - | |
| Min. flow rate (l/min) | - | |
| Min. extraction flow rate (m3/h) | 57 | |
| Pressure difference (Pa) | 5500 | |
| Capture efficiency (%) ISO 21904-3 | 84 | |
| Type of connection | Euro | |
| Wire diameters (mm) | 0.8...1.6 | |
| Load capacity: | ||
| 35% / Ar + 18% CO₂ | 400 A | |
| 60% / Ar + 18% CO₂ | - | |
| 100% / Ar + 18% CO₂ | - | |
| 35% / CO₂ | - | |
| 60% / CO₂ | - | |
| 100% / CO₂ | - | |
| Gas flow (l/min) in load capacity test | 20 | |
| Filler wire diameter in load capacity test | 1.6 | |
| Stick out length in load capacity test | 22 | |
| Filler wire diameters (mm): | ||
| Fe | 0.8...1.6 | |
| Fe-MC/FC | 0.9...1.6 | |
| Ss | 0.8...1.6 | |
| Ss-MC/FC | 0.9...1.6 | |
| Al | 0.8...1.6 | |
| Operating temperature range | -20°C…+40°C | |
| Storage temperature range | -40°C…+60°C | |
| Pistol grip handle | Yes | |
| Rotating neck | No | |
| Changeable neck | No | |
| Neck dimensions: | ||
| Length x (mm) ( see figure below ) | 130 | |
| Height y (mm) ( see figure below ) | 90 | |
| Neck angle ɑ (°) ( see figure below ) | 45 | |
| Standards | IEC 60974-7 ISO 21904-3 |
|
| Gun length (m) | 3.5 / 5 | |
* Measured using the longest gun length available.

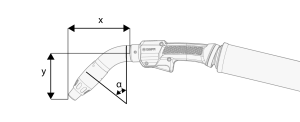

Neck dimensions, G-models:
