Replacing and adjusting vacuum nozzle

The vacuum nozzle is a consumable part, which needs to be changed if worn.

1.

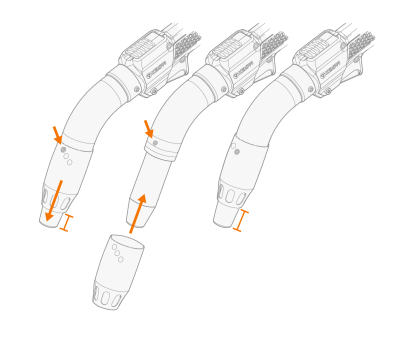

Remove the old vacuum nozzle by pressing the locking pin and pulling out the vacuum nozzle.

2.

Attach the new vacuum nozzle so that the locking pin snaps into one of the three holes. The three holes are at different points for adjusting the vacuum nozzle lengthwise.
