Installing and removing grip handle (optional)

The additional grip handle is available for all Flexlite GC MIG welding guns.

1.

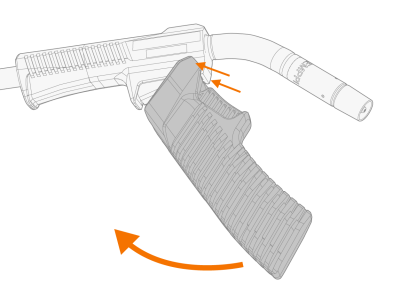

Keeping the bottom of the grip handle pointing forward, fit the inside grooves of the grip handle over the screws on the gun.

2.

Pull the handle backward to lock it in position.

To remove the grip handle, press the unlock button in the grip handle rear.
