Connecting cables

For normal operation, the DCM box requires only the CAN cable to be connected.

Unused DCM connectors are covered. Leave the covers in place.

1.

Connect the CAN cable to the power source or to the wire feeder.

2.

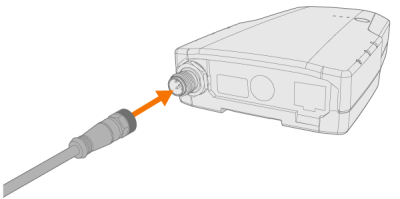

Connect the other end of the CAN cable to the DCM box. Secure the cable by turning the cable coupling firmly on the connector threads.
