Resetting

The DCM can be reset to factory settings with a long-press of the button on the module.

1.

Ensure that the DCM is ready and available: Blue LED (C) blinks infrequently.

2.

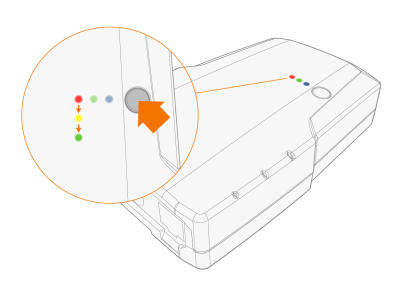

Press the button on the DCM device for 30 seconds:

>>  After the first 10 seconds, the leftmost LED turns red.

>>  After 20 seconds, the leftmost LED turns yellow.

>>  After 30 seconds, the leftmost LED turns green.

3.

When the leftmost LED is lit in green, release the button.

Now the factory settings have been restored and the welding data erased from the memory.
