Mounting R500 WF EUR/EUR+ on robot arm

To mount the wire feeder on the robot arm, use a two-part mounting bracket. Mounting brackets are available for the most commonly used welding robots. For a complete list of the available brackets, refer to the product catalog at Kemppi.com.

1.

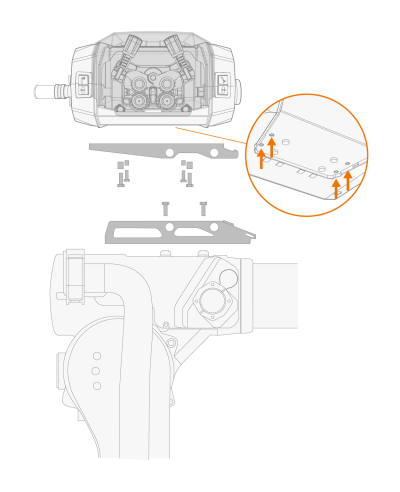

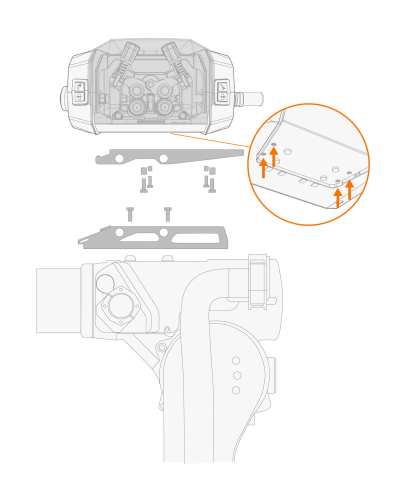

Fasten the upper part of the bracket to the bottom of the wire feeder with bolts.

Use the insulating bushes with the bolts.

2.

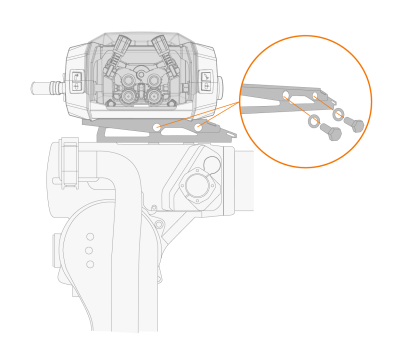

Fasten the lower part of the bracket to the robot arm with bolts.



3.

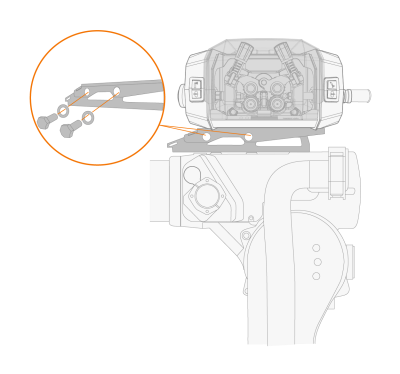

Place the upper part of the bracket to the lower part and secure them with bolts.
