R500 wire feeders
This section describes the structure of R500 wire feeders.

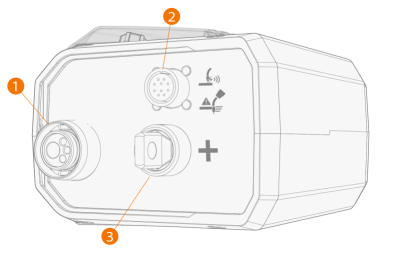

R500 Wire Feeder EUR, front
|
1.
|
Euro connector for welding cable connection |
|
2.
|
Peripheral connector for welding gun auxiliary products |
|
3.
|
Welding current cable connector, positive (+) connector |

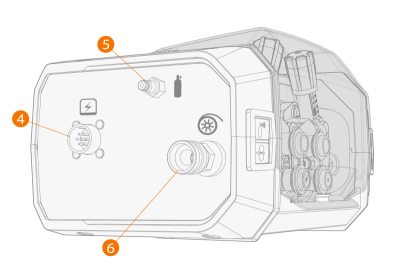

R500 Wire Feeder EUR, rear
|
4.
|
Control cable connector |
|
5.
|
Shielding gas hose connector |
|
6.
|
Wire conduit connector |
>> Always use the insulating sleeve (delivered with the wire feeder) in the wire conduit connector.

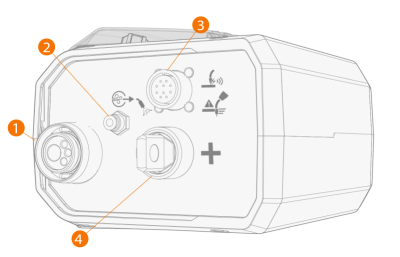

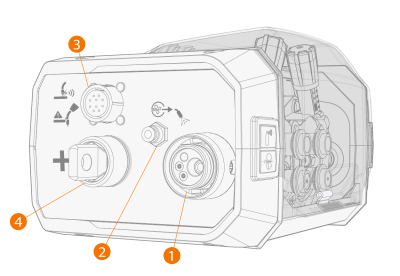

R500 Wire Feeder EUR+, front
| R500 Wire Feeder EUR+ |
R500 Wire Feeder RH EUR+ |
|
|
|
1.
|
Euro connector for welding cable connection |
|
2.
|
Compressed air outlet connection (for gun cleaning only) |
|
3.
|
Peripheral connector for welding gun auxiliary products |
|
4.
|
Welding current cable connector, positive (+) connector. |

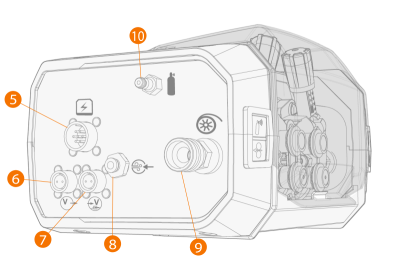

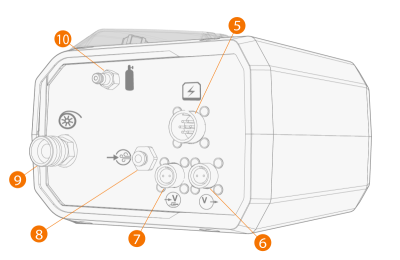

R500 Wire Feeder EUR+, rear
| R500 Wire Feeder EUR+ |
R500 Wire Feeder RH EUR+ |
|
|
|
5.
|
Control cable connector |
|
6.
|
Voltage sensing cable connector for interconnection cable (required for WiseThin+ and WiseRoot+ processes) |
|
7.
|
Voltage sensing cable connector for work piece (required for WiseThin+ and WiseRoot+ processes) |
|
8.
|
Compressed air inlet connection (for gun cleaning only) |
|
9.
|
Wire conduit connector |
>> Always use the insulating sleeve (delivered with the wire feeder) in the wire conduit connector
|
10.
|
Shielding gas hose connector. |

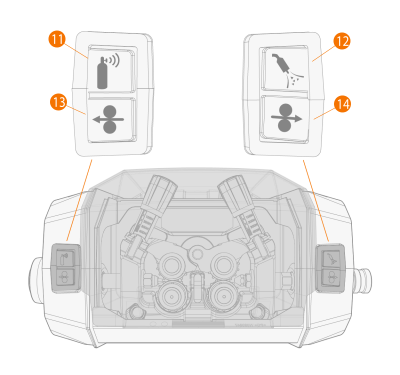

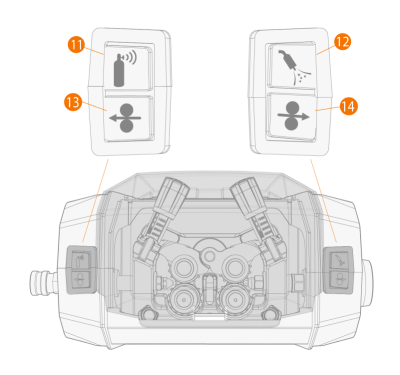

R500 Wire Feeder EUR/EUR+, top
| R500 Wire Feeder EUR/EUR+ |
R500 Wire Feeder RH EUR+ |
|
|
|
12.
|
Air blow button (usable in R500 Wire Feeder EUR+ only) |
|
13.
|
Wire inch backward button |
>> Drives the filler wire backward (with arc off)
|
14.
|
Wire inch forward button |
>> Drives the filler wire forward (with arc off).
