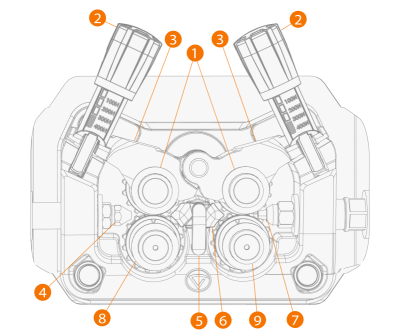

Wire feed mechanism

R500 Wire Feeder EUR/EUR+	R500 Wire Feeder RH EUR+

1.

Pressure rolls and pressure roll mounting pins

2.

Pressure handles

3.

Pressure roll locking arms

4.

Inlet guide tube

5.

Middle guide tube locking clip

6.

Middle guide tube

7.

Outlet guide tube

8.

Rear drive roll and drive roll mounting cap

9.

Front drive roll and drive roll mounting cap.

For installing the feed rolls, refer to Installing feed rolls (R500 WF EUR/EUR+ / RA50 4R).

For installing the wire guide tubes, refer to Installing wire guide tubes (R500 WF EUR/EUR+).
