R500 Wire Feeder HD EUR+
This section describes the structure of R500 Wire Feeder HD EUR+.

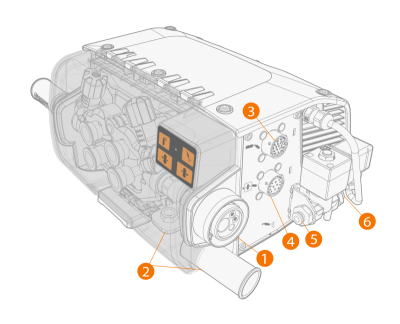

R500 Wire Feeder HD EUR+, front
|
1.
|
Euro connector for welding torch connection |
|
2.
|
Positive (+) welding current cable connector and the welding current cable's protective sleeve |
|
3.
|
Robot welding torch control cable connector |
|
4.
|
Push-pull welding torch control cable connector |
|
5.
|
Compressed air valve, outlet connector (for welding torch cleaning only) |
|
6.
|
Compressed air valve, inlet connector (for welding torch cleaning only) |

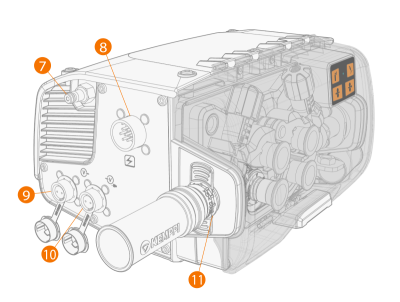

R500 Wire Feeder HD EUR+, rear
|
7.
|
Shielding gas hose connector |
|
8.
|
Wire feeder control cable connector |
|
9.
|
Voltage sensing cable connector for interconnection cable (required for WiseThin+ and WiseRoot+ processes) |
|
10.
|
Voltage sensing cable connector for work piece (required for WiseThin+ and WiseRoot+ processes) |
|
11.
|
Wire conduit connector |
>> Always use the insulating sleeve (delivered with the wire feeder) in the wire conduit connector

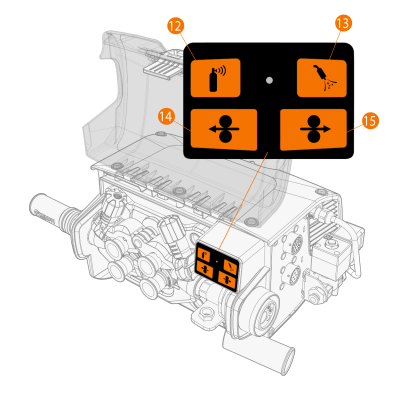

R500 Wire Feeder HD EUR+, top
|
14.
|
Wire inch backward button |
>> Drives the filler wire backward (with arc off)
|
15.
|
Wire inch forward button |
>> Drives the filler wire forward (with arc off).
