AX MIG Welder interconnection cable

The AX MIG Welder interconnection cables come in multiple different lengths and configurations to suit your equipment setup.

For installing cables, refer to Connecting cables to power source and RCM and Connecting cables to wire feeder (R500).

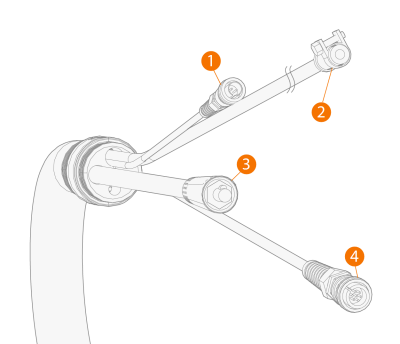

Power source end of interconnection cable

1.

Voltage sensing cable (required for WiseThin+ and WiseRoot+ processes)

2.

Shielding gas hose

3.

Welding current cable

4.

Wire feeder control cable.

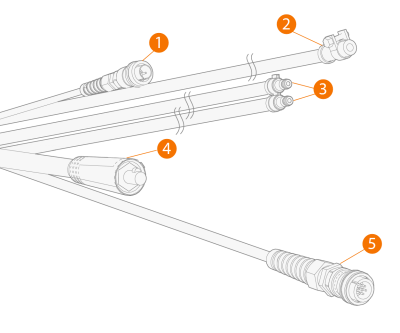

Power source end of interconnection cable - water cooling

1.

Voltage sensing cable (required for WiseThin+ and WiseRoot+ processes)

2.

Shielding gas hose

3.

Cooling liquid hoses (inlet/outlet)

4.

Welding current cable

5.

Wire feeder control cable.

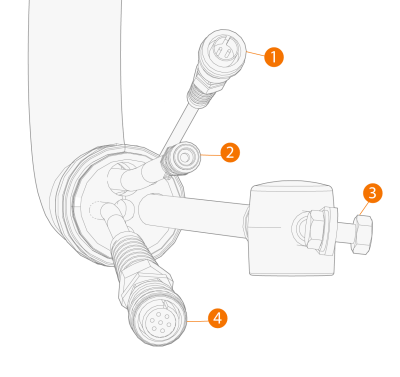

Wire feeder end of interconnection cable

1.

Voltage sensing cable (required for WiseThin+ and WiseRoot+ processes)

2.

Shielding gas hose

3.

Welding current cable

4.

Wire feeder control cable.

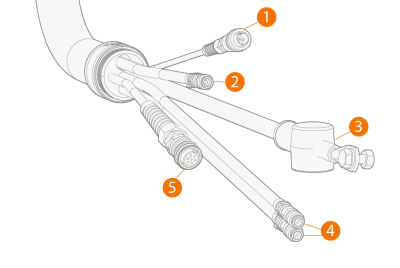

Wire feeder end of interconnection cable - water cooling



1.

Voltage sensing cable (required for WiseThin+ and WiseRoot+ processes)

2.

Shielding gas hose

3.

Welding current cable

4.

Coolant hoses (inlet/outlet)

5.

Wire feeder control cable.
